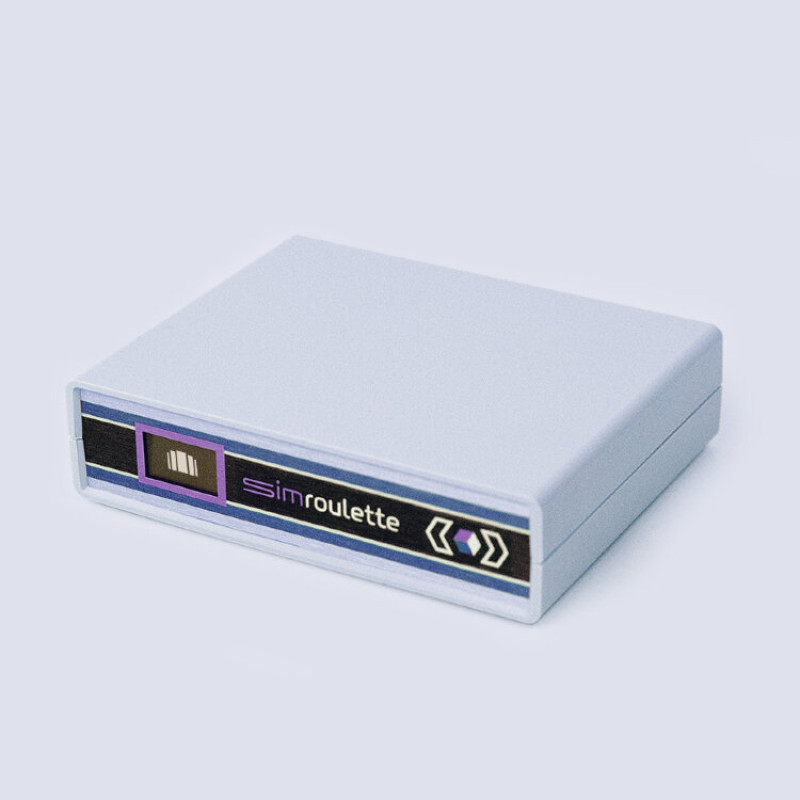

SR-Box-8

SR-Box-8 is a compact electronic SIM aggregator of the new generation. Its external connector for SIM cards enables convenient connection of cards of different form factors using SIM adapters. It also supports connecting external SIM banks accommodating 64–512 SIM cards.

Built-in modem antennas have allowed for a significant reduction in device size while retaining all necessary functions.

SR-Box-8 is equipped with eight GSM (2G) SIM800 modems.

The aggregator supports an 8-channel auto-receptionist and automated voice announcements. If needed, you can connect an audio headset for voice calls.

Management and Integration

SR-Box operates fully autonomously, powered by an integrated processor and Wi-Fi internet connection. Administration is handled remotely via web panels such as SR-Navigator or SimFolder, accessible from any PC, tablet, or smartphone.

The device utilizes a modern API aimed at practical application. Although standard AT commands are still supported by the aggregator, this integration method is now considered outdated. Instead, an event-driven management model is utilized: for example, the server sends a command to connect a specific SIM card number, and the aggregator automatically handles all related processes, monitors connection status, and transfers incoming SMS messages and other events back to your software. This significantly speeds up interactions and reduces server load.

SR-Box-8 provides a reliable and functional solution for professional work with SIM cards in 2G networks.

Included in the package:

• Device SR-Box-8
• Power Supply Unit
• User Manual

To operate the device, you must select one of the offered SIM adapters or purchase either SR-Bank-64 or SR-Bank-64 Mini. Up to 8 SIM banks can be connected to a single SR-Box-8.

Technical Specifications:
