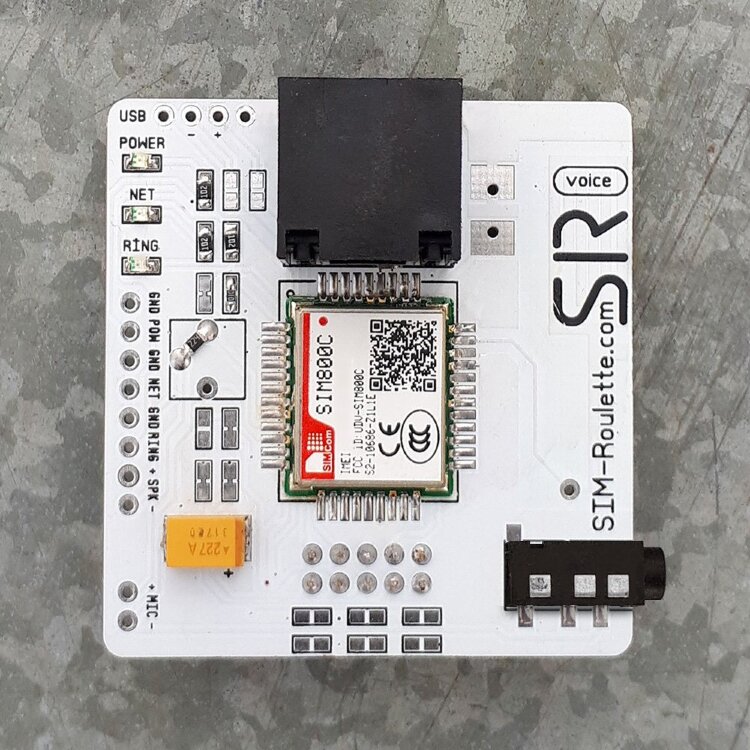

SIM800 modem
Technical specifications:
GSM/GPRS/EDGE 850/900/1800/1900MHz
Controlled by AT commands (3GPP TS 27.007, 27.005 SIMCOM enhanced AT Commands)
Automatic baud rate detection for AT commands
Send and receive GPRS data (TCP/IP, HTTP, etc.)
Maximum GPRS data transfer rate: 85.6 Kbaud
Encoding: CS-1, CS-2, CS-3 and CS-4
Supports GSM 07.10 protocol
Supports SIM cards with 3V and 1.8V power supply
Supply voltage: 3.4 ... 4.4 V (nominal 4V)
An RJ-45 connector is integrated on the modem board, which allows connecting an external audio device.
| Compatibility | SR-1640, SR-Nano-500, SR-Nano-1000 |
| Communications standard | 2G |
| External control device | Optional |
| Voice features | Yes |
| Headset jack | Yes |
| 8P8C (RJ-45) port (switch) | Yes |
| USB connection | Yes |
| Weight | 14 g |
| Size (мм) | 50 × 50 × 22 |
